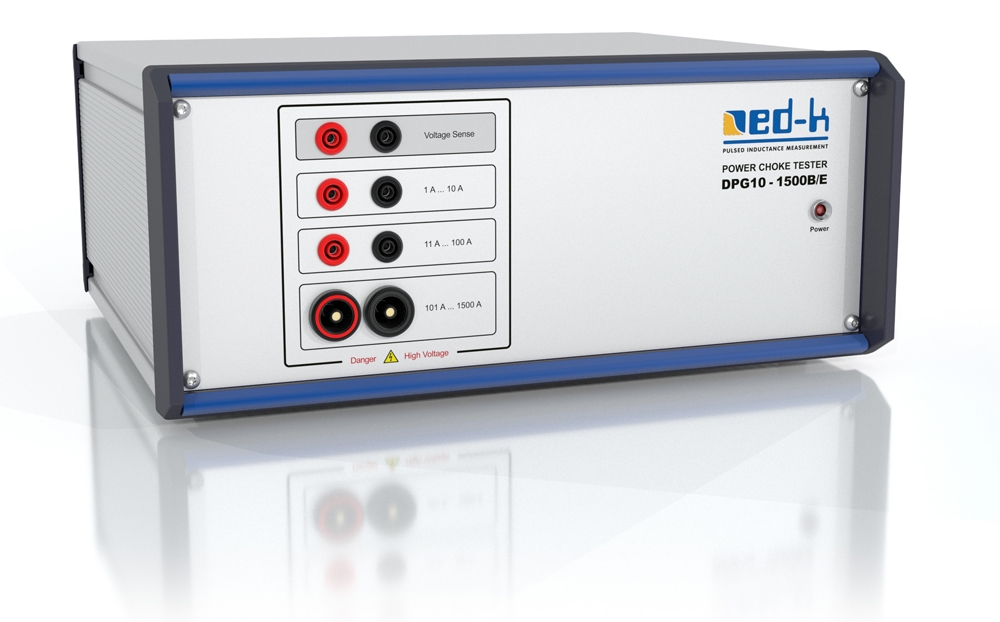

Power Choke Tester DPG10 – 1500B/E

This variant is identical to the DPG10-1500B, but is able to provide double maximum pulse energy (up to 2750 J).

Measuring current, max. 1 – 1500 A
Pulse energy, max. 2750 J
Pulse width, max. 3 µs – 70 ms adjustable
Pulse voltage 10 – 400 V adjustable
Resistance measurement 0.01 mΩ – 35 Ω
Dimensions 365 (W) x 325 (L) x 167 (H) mm³

The inductance curve of test specimens with an ohmic resistance that exceeds the measuring range can nevertheless be measured when the resistance is entered manually.

This variant is also suitable for very large power chokes. Therefore, the Power Choke Tester DPG10 – 1500B/E is mostly used by customers in the sectors railway technology, frequency inverters, energy management etc.

pdf-icon-33 Description and technical specifications of the Power Choke Tester DPG10

pdf-icon-33Data sheet of the Power Choke Tester DPG10 series

Scope of delivery:

  • DPG10 – 1500B/E
  • Cable set
    • Test leads 2x Force, 1x Sense, 0.6 m each with alligator clips
    • USB cable and RS232 cable
    • Power cord
  • PC software for Windows
  • Instruction manual
  • Calibration certificate
  • Library (DLL) for integration of the instrument in automated test environments using your own application or LabVIEW

Optional accessories

  • Kelvin test leads (KK11-4)
  • Kelvin test leads for small devices under test (KK12-4)
  • Kelvin test leads up to 5 kA (KK11-6)
  • Extra long test leads (KL11-4)
  • Extra long test leads (KL11-6)
  • Hard-top case (CASE1)
  • Customer specific test leads on request
